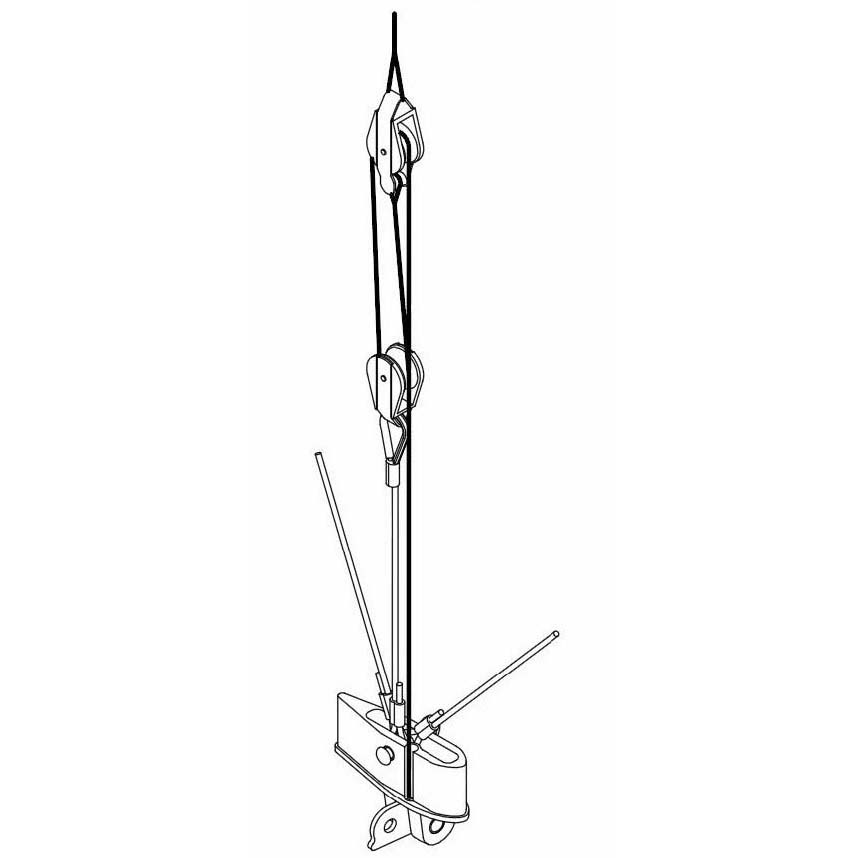

| Qty | Part No | Description | Comment |
|---|---|---|---|

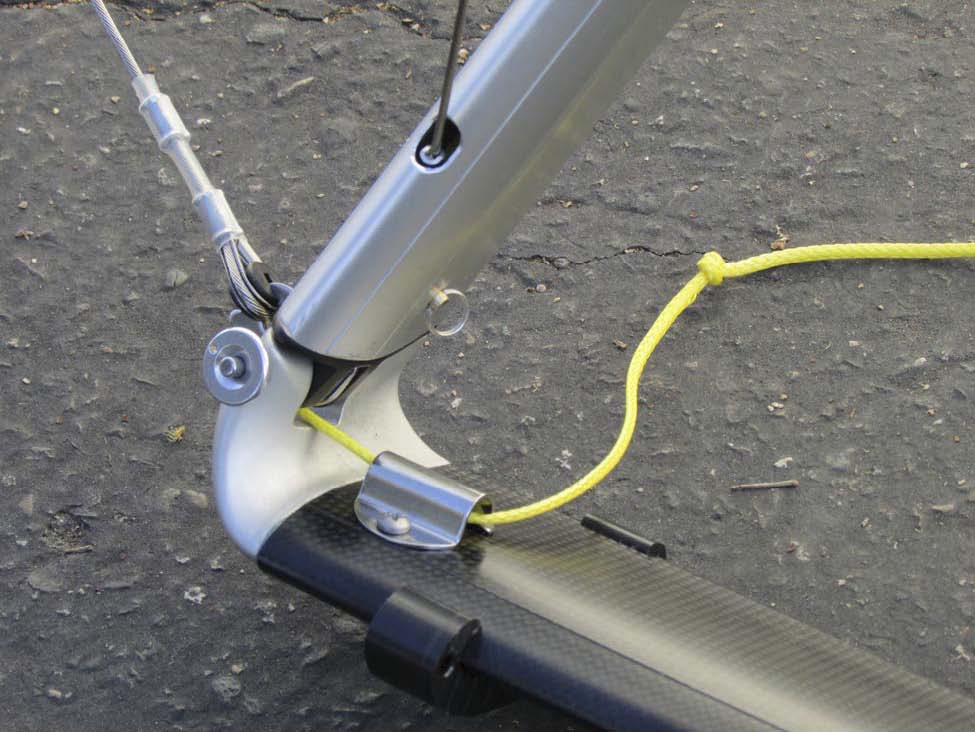

| 1 | 20P-1270 | BEARING .5 OD .312 ID .156 TH | Located at base of downtube plug, most important item to replace regularly to reduce friction |
| 1 | 45K-1509 | VG ROPE – T2 LOWER | This is a fabricated item with a sewn loop on one end. The sewn loop is attached to the becket on the 20P‐1207 pulley shown on the following image by larks-heading it around the becket |
| Qty | Part No | Description | Comment |
|---|---|---|---|
| 1 | 40P‐5201 | WIRE VG LEG PULLEY | This pulley can only be replaced by replacing the wire |
| 1 | 20P‐1207 | PULLEY RONSTAN SINGLE W/BECKET |
| Qty | Part No | Description | Comment |
|---|---|---|---|

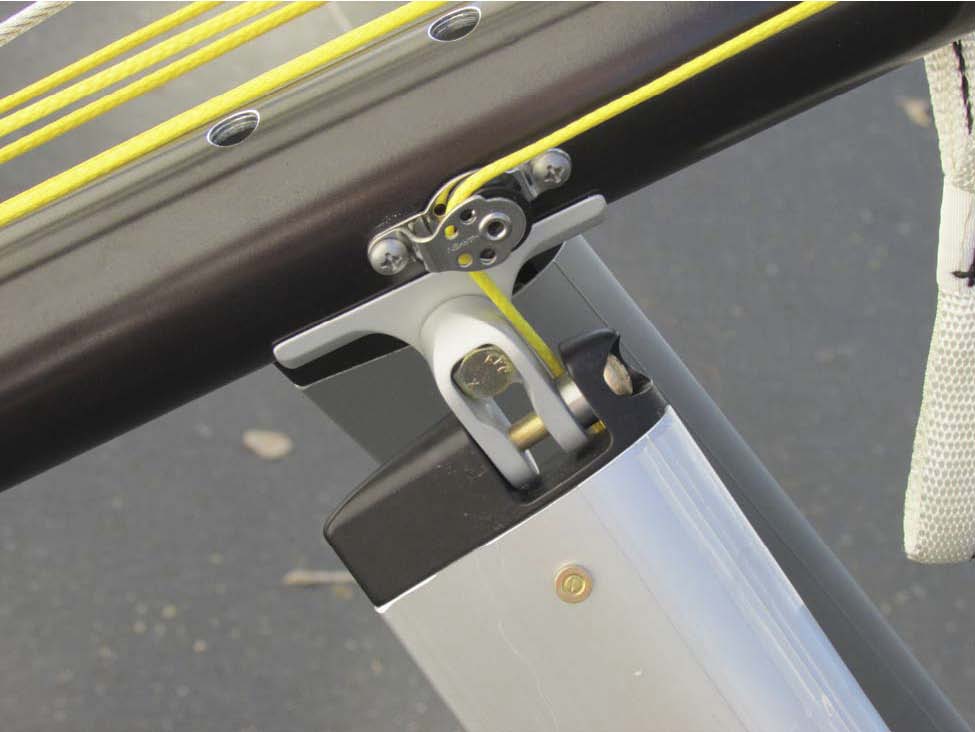

| 1 | 20P‐1270 | BEARING .5 OD .312 ID .156 TH | Located in the top end-plug, secured by the bolt, as shown. |
| 1 | 20P‐1237 | PULLEY HARKN 16mm AIRBLOCK CHEEKBLOCK |

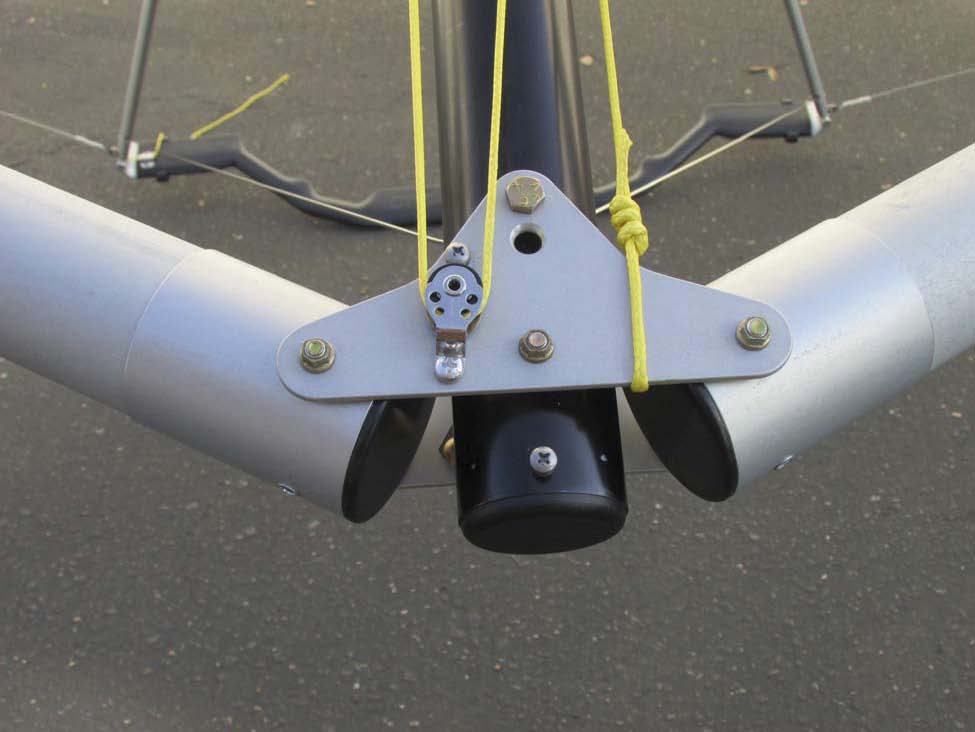

| Qty | Part No | Description | Comment |
|---|---|---|---|
| 1 | 20P‐1237 | PULLEY HARKN 16mm AIRBLOCK CHEEKBLOCK |
| Qty | Part No | Description | Comment |
|---|---|---|---|
| 1 | 20P‐1206 | PULLEY RONSTAN SINGLE |
| Qty | Part No | Description | Comment |
|---|---|---|---|

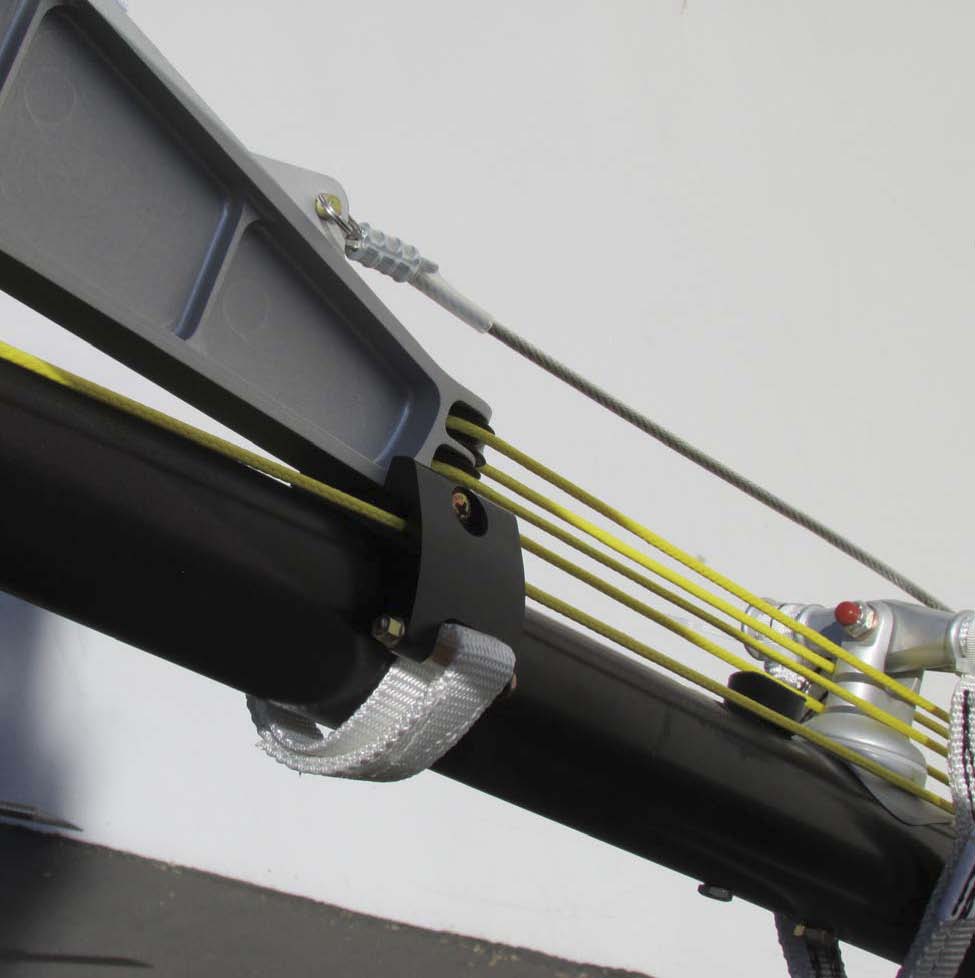

| 2 | 20P‐1230 | PULLEY HARKN SHEAVE TOP LEG VG | Installed in back of center wedge |

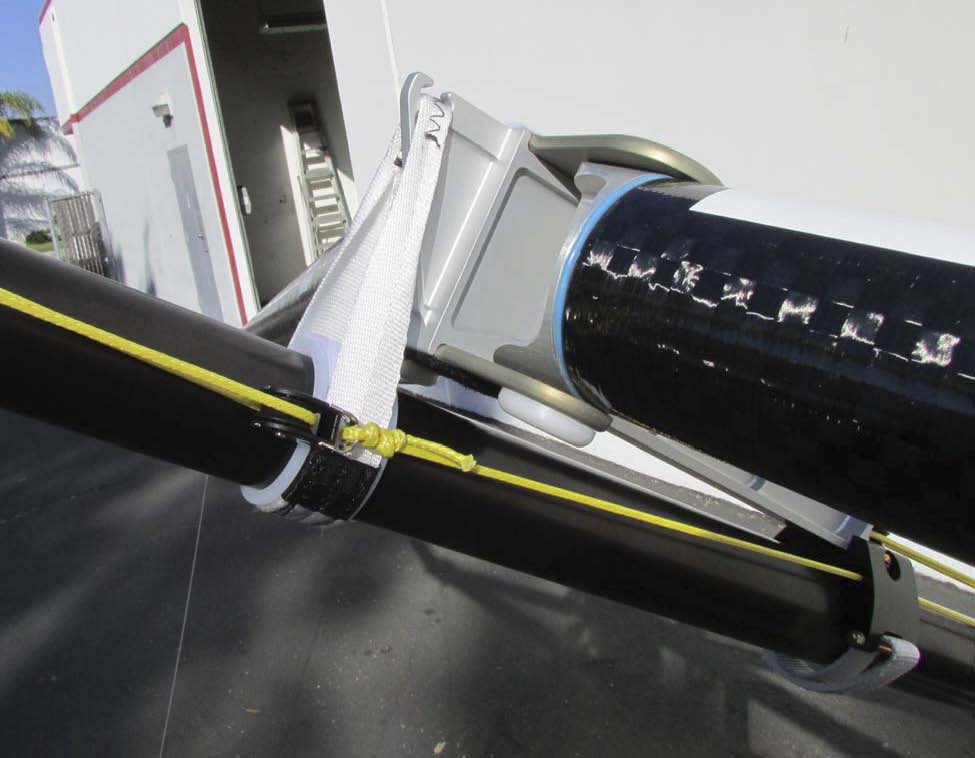

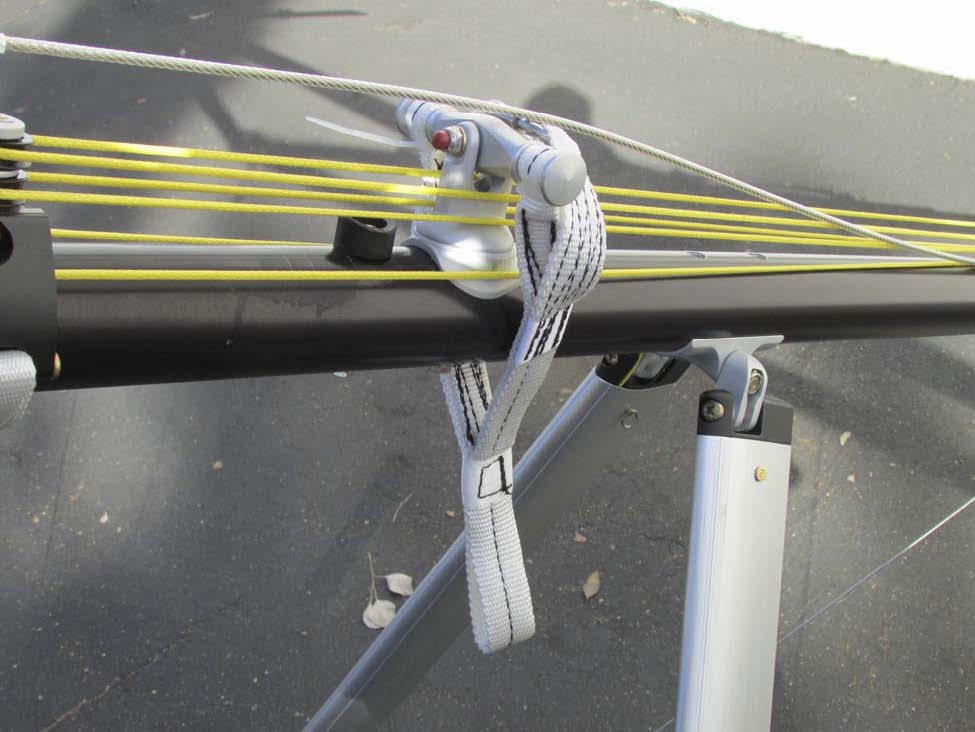

Shows VG-routing around hang pillar

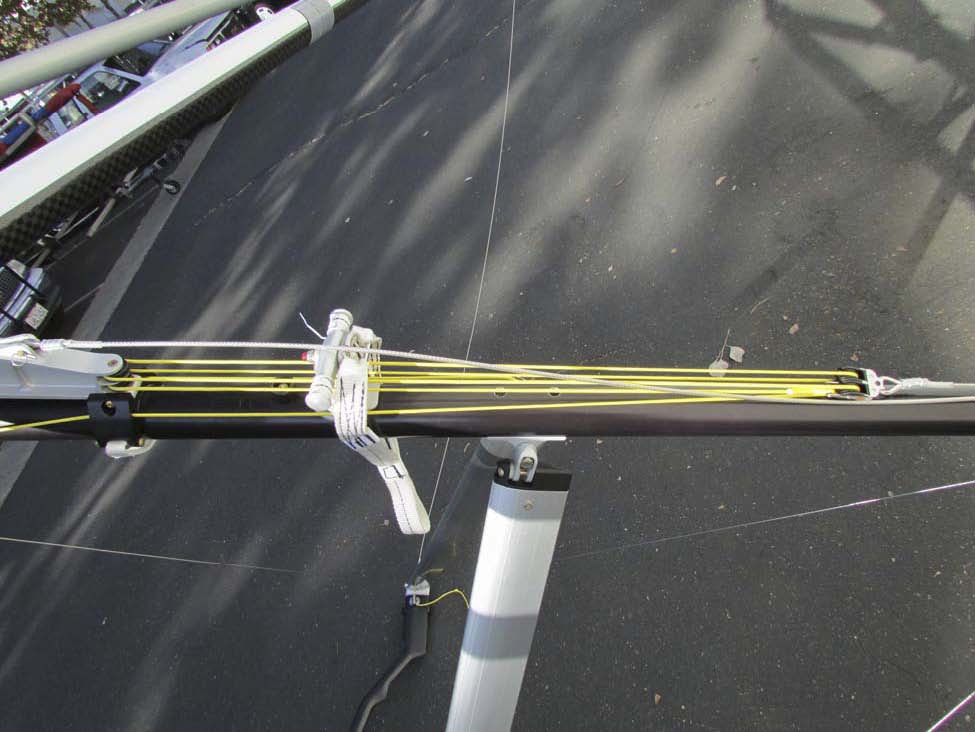

Shows overall routing in rear and through keel-beam sled
| Qty | Part No | Description | Comment |
|---|---|---|---|

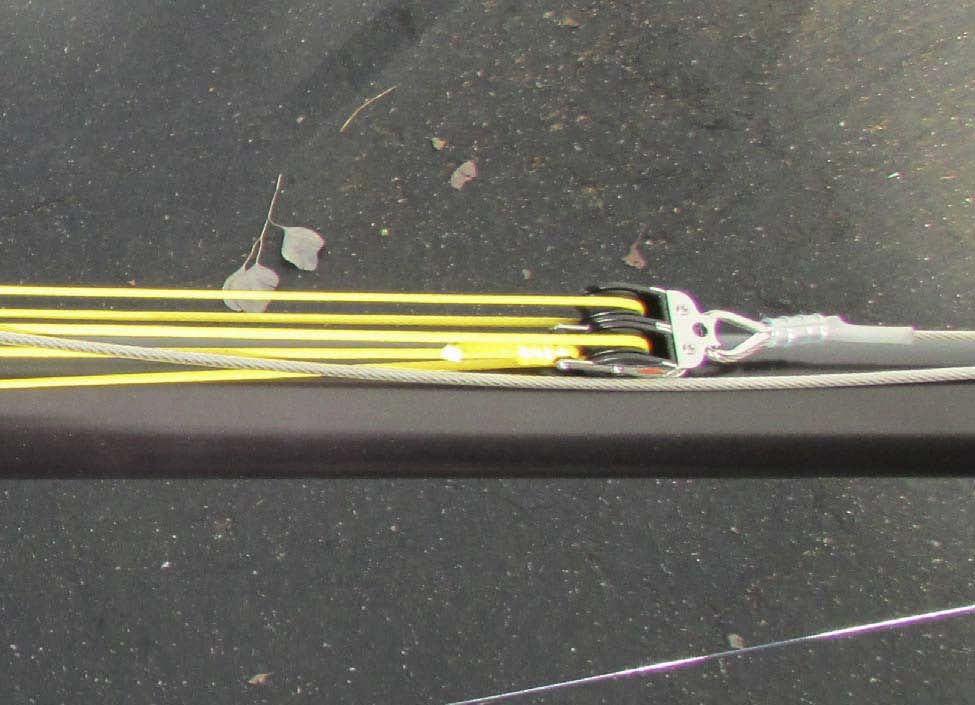

| 1 | 40P‐4210 | WIRE XBAR SWEEP T2 W/PULLEY | Pulley can only be replaced by replacing sweep wire |
| 37ft | 30J‐3012 | CORD ‐ 3MM OC3‐3Y YELLOW | This is raw line, used for the rear rope shown, and the front rope shown earlier, that terminates in the pulley inside the top of the downtube |
